Computer To Plate
 |
 |
Small to medium-size printing companies looking for cost-effective solutions for high-quality thermal CTP production need look no further than Screen. This next generation of Screen's popular PlateRite 4000 series CTP systems has been reengineered for new levels of flexibility. The entry-level PlateRite 4300E and high-speed PlateRite 4300S platesetters bring superior quality and reliability to the production of 2-up to 6-up plates. The PlateRite 4300E and PlateRite 4300S offer the same high-quality features, such as a proven external drum design. Both models are able to handle the plate requirements of web and sheetfed presses. The PlateRite 4300E has a 16-channel laser diode imaging head that supports resolutions of 2,400 dpi, 2,438 dpi and 2,540 dpi. The PlateRite 4300S incorporates a 32-channel head, supporting imaging resolutions from 1,200 dpi to 4,000 dpi. At 2,400 dpi, the PlateRite 4300E can output up to 11 plates per hour, while the PlateRite 4300S can output 21 plates per hour. |
 |
|

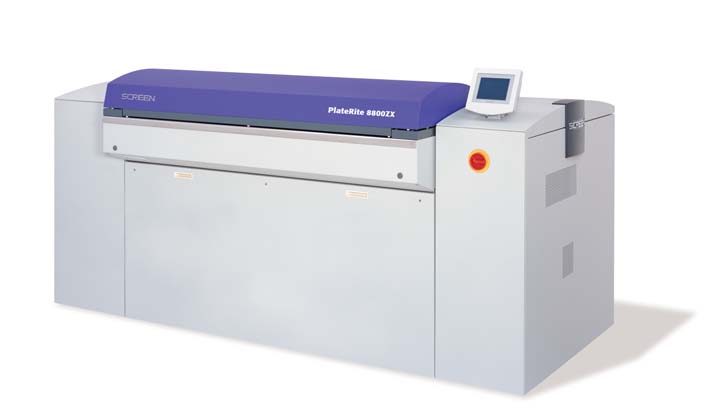

Screen's flagship 8-up CTP device is well suited to companies with above-average plate demands. The PlateRite 8800 series offers fast, reliable output, making it the perfect tool for the most advanced digital workflows. The PlateRite 8800 series features four models that handle plate sizes from 12" x 14.6" to 45.6" x 37". Multi-channel imaging heads based on grating light valve technology (GLV) ensure exceptional throughput. Support for imaging resolutions of 1,200, 2,400, 2,438 and 2,540 dpi is standard. The PlateRite 8800E outputs 24 plates per hour when using a 40.5 " x 31.4" plate and 2,400 dpi resolution. The PlateRite 8800S outputs 32 plates per hour. The PlateRite 8800Z has an option for resolutions of 4,000 dpi, high enough for the printing of bonds, securities and lenticular products. It outputs 42 plates per hour. The PlateRite 8800ZX also is capable of 4,000 dpi resolution and boasts a top speed of 50 plates per hour. |
 |
|

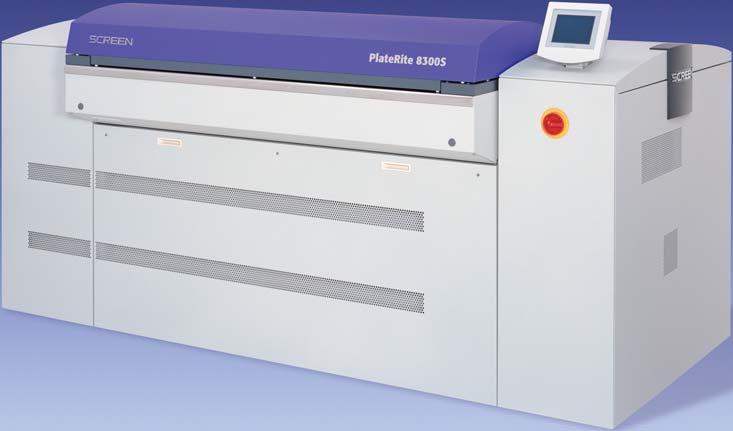

The two models in the PlateRite 8300 series are attractive choices for print shops that operate presses with formats in the 2-page to 8-page range, whether the presses are web or sheetfed offset. These state-of-the-art thermal CTP recorders incorporate all the features that have won the PlateRite series its reputation for precision and productivity. They also offer the benefits of easy daylight operation. The economical PlateRite 8300E utilizes a 16-channel light source capable of imaging resolutions of 2,400 dpi, 2,438 dpi and 2,540 dpi. At 2,400 dpi, the PlateRite 8300E images 8 plates per hour. The PlateRite 8300S has a high-speed rotating drum and a 32-channel imaging head that supports 1,200 dpi to 4,000 dpi resolutions. The PlateRite 8300S produces 13 plates per hour at 2,400 dpi. |
 |
|

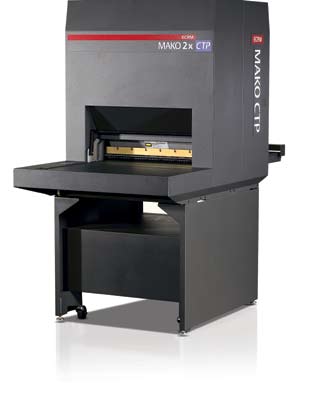

The MAKO 2x CTP provides an easy, value-packed entry into CTP production with a full resolution range of 1200 – 3556 dpi. It is one of the fastest 2-page CTP units in its class, imaging over 27 GTO plates per hour at 2400 dpi. By combining simplicity, versatility and proven imaging technology, the MAKO 2x brings maximum CTP benefits including reduced operating costs and improved quality on press to 2-page printers. |
 |
|
The MAKO 4x is the latest evolution in the MAKO CTP family, and one of the first Violet CTP devices in the world to offer commercial printers a clear path to chemistry-free technology. The MAKO 4x represents ECRM’s highest quality imaging output with resolution sets from 1200 – 3556 dpi, and is one of the fastest 4-page CTP units in its class, imaging over 19 Speedmaster 74 plates per hour at 2400 dpi. |
 |
|
Your wait for computer-to-plate is over because the SDP-Eco1630IIIR Platesetter from Mitsubishi Imaging is ready to work for you. The ROHS compliant version of our popular 2-up platesetter is now even more environmentally friendly and at a top resolution of 2400 dpi is designed for superb print quality. Best of all, the SDP-Eco1630IIIR is designed specifically to run Mitsubishi Silver DigiPlate™ material, giving you a productive edge on every job. |
